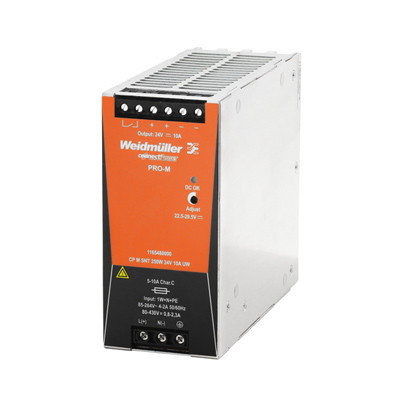

Источник питания управляемый CP M SNT 250W 24V 10AUW, фото 2
Источник питания управляемый CP M SNT 250W 24V 10AUW, фото 2
Описание
Характеристики
Информация для заказа
General ordering data
Type CP M SNT 250W 24V 10AUW
Order No. 1165480010
Version Power supply, switch-mode power supply unit, 24 V
GTIN (EAN) 4050118117318
Qty. 1 pc(s).
Dimensions and weights
Width 60 mm
Width (inches) 2.362 inch
Height 130 mm
Height (inches) 5.118 inch
Depth 155 mm
Depth (inches) 6.102 inch
Net weight 1,300 g
Temperatures
Operating temperature, max. 70 °C
Operating temperature, min. -25 °C
Storage temperature, max. 85 °C
Storage temperature, min. -40 °C
Operating temperature -25 °C...70 °C
Ambient temperature -25 °C...+70 °C (derating from 60 °C)
Storage temperature -40 °C...85 °C
Input
AC current consumption 1.2 A @ 230 V AC / 2.4 A @ 115 V AC
AC input voltage range 85…264 V AC (Derating @ 100 V AC)
Connection system Screw connection
DC current consumption 0.8 A @ 370 V DC / 2.3 A @ 120 V DC
DC input voltage range 80…430 V DC
Frequency range AC 47...63 Hz
Input fuse (internal) Yes
Inrush current max. 12 A
Rated input voltage 100...240 V AC (wide-range input)
Recommended back-up fuse 4 A / DI, safety fuse
10 A, Char. B, circuit breaker
3...4 A, Char. C, circuit breaker
Wire connection method Screw connection
output
Continuous output current @ URated 12 A @ 45 °C, 10.7 A @ 55 °C, 7.5 A @ 70 °C
Output current 10 A
Output voltage 24 V
Output voltage 22.5...29.5 V (adjustable via potentiometer on front)
Output voltage type DC
Overload protection Yes
Parallel connection option Yes, max. 5 (without diode module)
Power reserve at nom. voltage 12 A for 1 min, ED = 5 %
Rated (nominal) output current @ UNom 10 A @ 60 °C
Rated output voltage 24 V DC ± 1 %
Residual ripple, breaking spikes < 50 mVSS @ 24 V DC, IN, < 2,4 VSS @ 24 V DC, IN @ -40°C
Wire connection method Screw connection
General data
AC failure bridging time @ INom > 20 ms @ 230 V AC / > 20 ms @ 115 V AC
Ambient temperature -25 °C...+70 °C (derating from 60 °C)
Clip-in foot metal
Current limiting > 120 % IN
Degree of efficiency 90 % @ 230 V AC / 87 % @ 115 V AC
Housing version Metal, corrosion resistant
Indication Dual LED Operational: green LED, Error: red LED
MTBF > 500,000 h acc. to IEC 1709 (SN29500
Max. perm. air humidity (operational) 5 %…95 % RH
Mounting position, installation notice Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
Operating temperature -25 °C...70 °C
Power factor (approx.) > 0.99 @ 230 V AC / > 0.97 @ 115 V AC
Protection against over-heating Yes
Protection against reverse voltages from the load 30…35 V DC
Protection degree IP20
Short-circuit protection Yes
Systemdaten
Output current 10 A
EMC / shock / vibration
Limiting of mains voltage harmonic currents in accordance with EN 61000-3-2
Noise emission acc. to EN55022 Class B
Interference immunity test acc. to EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips)
Shock resistance IEC 60068-2-27 30 g in all directions
Insulation coordination
Class of protection I, with PE connection
Insulation voltage 3 kV input/ouput; 2 kV input/earth; 0.5 kV output/earth
Pollution severity 2
Electrical safety (applied standards)
Electrical machine equipment Acc. to EN60204
For use with electronic equipment Acc. to EN50178 / VDE0160
Protection against dangerous shock currents Acc. to VDE0106-101
Protective separation / protection against electrical shock VDE0100-410 / acc. to DIN57100-410
Safety extra-low voltage SELV acc. to EN60950, PELV acc. to EN60204
Safety transformers for switch-mode power supplies nach EN61558-2-16
