Источник питания управляемый CP E SNT 75W 12V 6A, фото 2
Источник питания управляемый CP E SNT 75W 12V 6A, фото 2
Описание
Характеристики
Информация для заказа
General ordering data
Type CP E SNT 75W 12V 6A
Order No. 1202480000
Version Power supply, switch-mode power supply unit
GTIN (EAN) 4050118031553
Qty. 1 pc(s).
Availability Delivery date on request
Dimensions and weights
Width 98.5 mm
Width (inches) 3.878 inch
Height 40 mm
Height (inches) 1.575 inch
Depth 135 mm
Depth (inches) 5.315 inch
Net weight 400 g
Temperatures
Storage temperature, max. 85 °C
Storage temperature, min. -20 °C
Ambient temperature -20°C…70°C (>50°C derating,refer derated curve); 70% rated load@70°C
Storage temperature -20 °C...85 °C

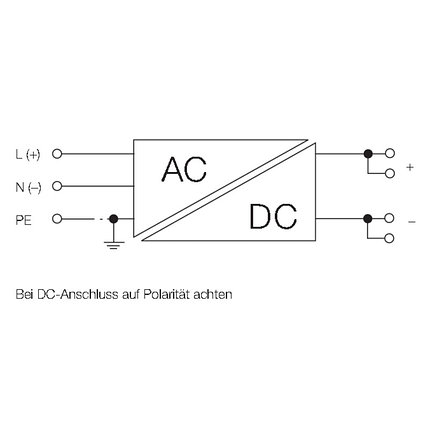

Input
AC current consumption 1 A @ 230 V AC / 2 A @ 120 V AC
AC input voltage range 85...264 V AC
Connection system Screw connection
DC input voltage range 110…370 V DC
Frequency range AC 47...63 Hz
Input fuse (internal) yes / max. 20A
Rated input voltage 100...240 V AC (wide-range input)
Recommended back-up fuse 4 A at 230 V AC, characteristic curve C
output
Mains failure bridge-over time 20 ms
Output current 6 A@12 V DC
Output power 75 W
Output voltage ± 10% nominal output voltage tolerance, adjustable with potentiometer
Overload protection 120~150% Ikonst. of max. output power, automatic restart
Parallel connection option Recommended with diode module
Rated output voltage 12 V DC
Residual ripple, breaking spikes < 100 mVPP
Surge protection 13.5...16.2 V @ 12 V DC
General data
AC failure bridging time @ INom min. 20 ms
Ambient temperature -20°C…70°C (>50°C derating,refer derated curve); 70% rated load@70°C
Degree of efficiency 81 % @ 12 V DC
EMC standards EN 55011, EN 55022, EN 55024, EN 61000-6 /-2, -3
Indication Operation, green LED
Max. perm. air humidity (operational) 5 %…95 % RH
Mounting position, installation notice Panel mount, screw fix
Protection degree IP20
Short-circuit protection Yes
Standards EN 60950
Systemdaten
Output current 6 A@12 V DC
EMC / shock / vibration
Noise emission acc. to EN55022 Class A
Insulation coordination
electrical isolation, input-earth 2 kV
electrical isolation, input-output 3 kV
electrical isolation, output-earth 0.5 kV
Connection data (input)
Connection system Screw connection
СостояниеНовое
  • Цена: Цену уточняйте
