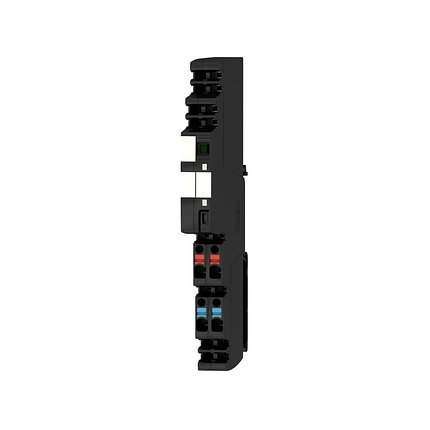

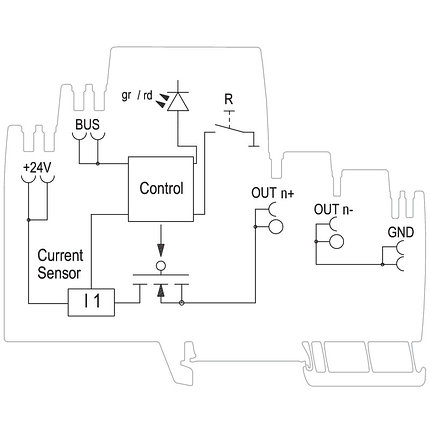

Контроль нагрузки AMG ELM-12, фото 2
Контроль нагрузки AMG ELM-12, фото 2
Информация для заказа
General ordering data
Type AMG ELM-12
Order No. 2080410000
Version Electronic load monitoring, 12.00 A, 24 V DC
GTIN (EAN) 4050118419405
Qty. 1 pc(s).
Availability Stock article
Dimensions and weights
Width 12.2 mm
Width (inches) 0.48 inch
Height 125 mm
Height (inches) 4.921 inch
Depth 96.5 mm
Depth (inches) 3.799 inch
Net weight 60 g
Operating temperature, max. 55 °C
Operating temperature, min. -25 °C
Storage temperature, max. 85 °C
Storage temperature, min. -40 °C
Operating temperature -25 °C...55 °C
Storage temperature -40 °C...85 °C
Probability of failure
MTTF 290 Years
Current consumption (full load) IOUT +30 mA
Current consumption (idle) 25 mA
DC input voltage range 18…30 V DC
Input fuse (internal) Yes
Rated input voltage 24 V DC
Surge protection Suppressor diode
max. admissible residual ripple at the input 100 mVpp
Capacitive load 20,000 µF
Connection system PUSH IN
Rated current 12 A
Surge protection Suppressor diode
Switch-on delay 1 s
Triggering characteristic see characteristic curve
adjustable rated current Yes
General data
Adjustable range 4-12 A
Function key Activation time < 3s, Reset, ON
Operating temperature -25 °C...55 °C
Protection degree IP20
Relay to activate the output No
Surge voltage category III
Insulation coordination
Surge voltage category III
Connection data (output)
Conductor cross-section, AWG/kcmil , max. 12
Conductor cross-section, AWG/kcmil , min. 26
Conductor cross-section, flexible , max. 2.5 mm?
Conductor cross-section, flexible , min. 0.14 mm?
Conductor cross-section, rigid , max. 2.5 mm?
Conductor cross-section, rigid , min. 0.14 mm?
Connection system PUSH IN
Number of terminals 4 (++ / --)
Screwdriver blade 0.6 x 3.5
LED green Operation (failure-free), Early warning: I Out > 90% I Rated (flashing)
LED red Load monitoring has disconnected, Load monitoring has triggered (flashing), Internal error (rapid flashing)
Transistor output, positive-switching Pre-warning, Alarm
Дополнительные характеристики
