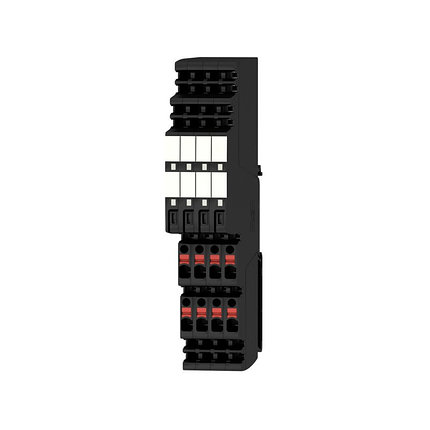

Контроль нагрузки AMG ELM-Q2222, фото 2
Контроль нагрузки AMG ELM-Q2222, фото 2
Описание
Характеристики
Информация для заказа
General ordering data
Type AMG ELM-Q2222
Order No. 2080750000
Version Electronic load monitoring, 24 V DC
GTIN (EAN) 4050118419511
Qty. 1 pc(s).
Availability Delivery date on request
Dimensions and weights
Width 24.4 mm
Width (inches) 0.961 inch
Height 125 mm
Height (inches) 4.921 inch
Depth 96.5 mm
Depth (inches) 3.799 inch
Net weight 104 g
Temperatures
Operating temperature, max. 55 °C
Operating temperature, min. -25 °C
Storage temperature, max. 85 °C
Storage temperature, min. -40 °C
Operating temperature -25 °C...55 °C
Storage temperature -40 °C...85 °C
Probability of failure
MTTF 130 Years
Input
Current consumption (full load) 4x IOUT +45 mA
Current consumption (idle) 35 mA
DC input voltage range 18…30 V DC
Input fuse (internal) Yes
Rated input voltage 24 V DC
Surge protection Suppressor diode
max. admissible residual ripple at the input 100 mVpp
output
Capacitive load 10,000 µF
Connection system PUSH IN
Rated current (per channel) 2 A
Surge protection Suppressor diode
Switch-on delay 1 s
Triggering characteristic see characteristic curve
adjustable rated current No
General data
Function key Activation time < 3s, Reset, ON
Operating temperature -25 °C...55 °C
Protection degree IP20
Relay to activate the output No
Surge voltage category III
Insulation coordination
Surge voltage category III
Connection data (output)
Conductor cross-section, AWG/kcmil , max. 12
Conductor cross-section, AWG/kcmil , min. 26
Conductor cross-section, flexible , max. 2.5 mm?
Conductor cross-section, flexible , min. 0.14 mm?
Conductor cross-section, rigid , max. 2.5 mm?
Conductor cross-section, rigid , min. 0.14 mm?
Connection system PUSH IN
Screwdriver blade 0.6 x 3.5
Signalling
LED green Operation (failure-free)
LED red Load monitoring has disconnected, Load monitoring has triggered (flashing), Internal error (rapid flashing)
Дополнительные характеристики
СостояниеНовое
  • Цена: Оптовые и розничные цены уточняйте
