| General ordering data | |

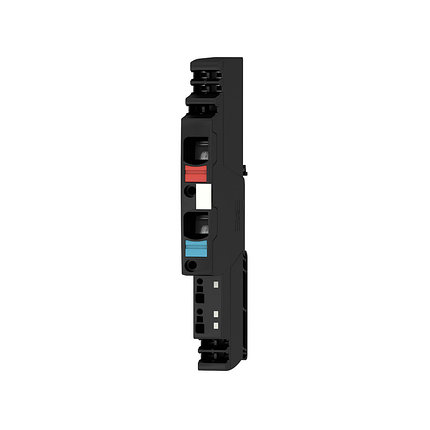

| Type | AMG FIM-0 |
| Order No. | 2081870000 |

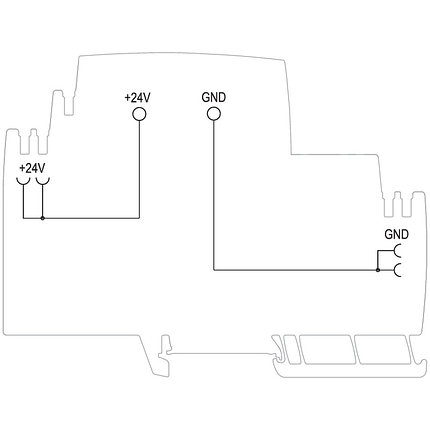

| Version | Feed-in module, 24 V DC |
| GTIN (EAN) | 4050118419443 |
| Qty. | 1 pc(s). |
| Availability | Stock article |
| Dimensions and weights | |
| Width | 12.2 mm |
| Width (inches) | 0.48 inch |
| Height | 125 mm |
| Height (inches) | 4.921 inch |
| Depth | 96.5 mm |
| Depth (inches) | 3.799 inch |
| Net weight | 0.14 g |
| Temperatures | |
| Operating temperature, max. | 55 °C |
| Operating temperature, min. | -25 °C |
| Storage temperature, max. | 85 °C |
| Storage temperature, min. | -40 °C |
| Operating temperature | -25 °C...55 °C |
| Storage temperature | -40 °C...85 °C |
| Probability of failure | |
| MTTF | 50,000 Years |
| Input | |
| Connection system | PUSH IN |
| DC input voltage range | 18…30 V DC |
| Input fuse (internal) | No |
| Rated input voltage | 24 V DC |
| max. admissible residual ripple at the input | 100 mVpp |
| output | |
| Connection system | PUSH IN |
| General data | |
| Control function | No |
| Control inputs | No |
| Operating temperature | -25 °C...55 °C |
| Protection degree | IP20 |
| Surge voltage category | III |
| Insulation coordination | |
| Surge voltage category | III |
| Connection data (input) | |
| Conductor cross-section, AWG/kcmil , max. | 6 |
| Conductor cross-section, AWG/kcmil , min. | 18 |
| Conductor cross-section, flexible , min. | 0.75 mm? |
| Conductor cross-section, rigid , max. | 10 mm? |
| Conductor cross-section, rigid , min. | 0.75 mm? |
| Connection system | PUSH IN |
| Number of terminals | 2 (+,?) |
| Screwdriver blade | 1.2 x 6.5 |
| Wire connection cross section, flexible (input), max. | 16 mm? |
| Connection data (output) | |
| Connection system | PUSH IN |
| Основные атрибуты | |
|---|---|
| Состояние | Новое |
- Цена: Цену уточняйте
