| General ordering data | |
| Type | AMG PD |
| Order No. | 2122920000 |
| Version | Potential distributor |
| GTIN (EAN) | 4050118425321 |
| Qty. | 10 pc(s). |
| Availability | Delivery date on request |
| Dimensions and weights | |
| Width | 6.1 mm |
| Width (inches) | 0.24 inch |
| Height | 125 mm |
| Height (inches) | 4.921 inch |
| Depth | 96.5 mm |
| Depth (inches) | 3.799 inch |
| Net weight | 27.5 g |
| Temperatures | |
| Operating temperature, max. | 55 °C |
| Operating temperature, min. | -25 °C |
| Storage temperature, max. | 85 °C |
| Storage temperature, min. | -40 °C |
| Operating temperature | -25 °C...55 °C |
| Storage temperature | -40 °C...85 °C |
| Probability of failure | |
| MTTF | 50,000 Years |
| Input | |
| Connection system | PUSH IN |
| output | |
| Connection system | PUSH IN |
| General data | |
| Current load per contact point | 12 A |
| Operating temperature | -25 °C...55 °C |
| Protection degree | IP20 |
| Total current load per potential | 12 A |
| Connection data (input) | |
| Connection system | PUSH IN |
| Connection data (output) | |
| Conductor cross-section, AWG/kcmil , max. | 12 |
| Conductor cross-section, AWG/kcmil , min. | 26 |
| Conductor cross-section, flexible , max. | 2.5 mm? |
| Conductor cross-section, flexible , min. | 0.14 mm? |
| Conductor cross-section, rigid , max. | 2.5 mm? |
| Conductor cross-section, rigid , min. | 0.14 mm? |
| Connection system | PUSH IN |

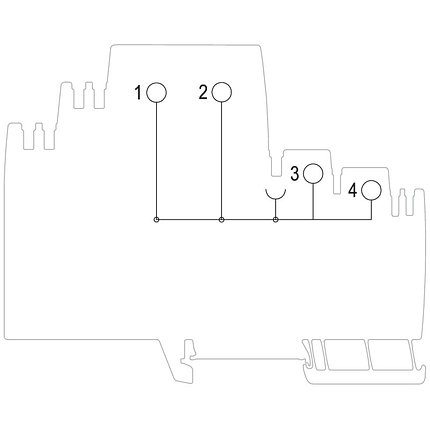

| Number of terminals | 4 (4x +), 2 x 1.5 mm?, 2 x 2.5 mm? |
| Screwdriver blade | 0.6 x 3.5 |
| Approvals | |
| Institute (cULus) | |
| Certificate no. (cULus) | E258476 |
| Основные атрибуты | |
|---|---|
| Состояние | Новое |
- Цена: Цену уточняйте
