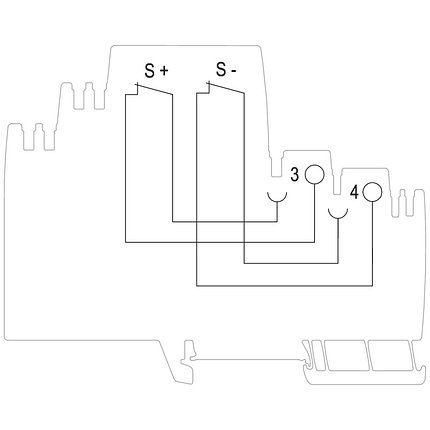

Распределитель потенциала AMG PP, фото 2
Распределитель потенциала AMG PP, фото 2
Описание
Характеристики
Информация для заказа
General ordering data
Type AMG DIS
Order No. 2123050000
Version Potential distributor
GTIN (EAN) 4050118425413
Qty. 10 pc(s).
Availability Delivery date on request
Dimensions and weights
Width 6.1 mm
Width (inches) 0.24 inch
Height 125 mm
Height (inches) 4.921 inch
Depth 96.5 mm
Depth (inches) 3.799 inch
Net weight 42.2 g
Temperatures
Operating temperature, max. 55 °C
Operating temperature, min. -25 °C
Storage temperature, max. 85 °C
Storage temperature, min. -40 °C
Operating temperature -25 °C...55 °C
Storage temperature -40 °C...85 °C
Probability of failure
MTTF 13,000 Years
Input
Type of connection PUSH IN
output
Connection system PUSH IN
General data
Current load per contact point 12 A
Operating temperature -25 °C...55 °C
Potential isolation +, GND
Protection degree IP20
Total current load per potential 12 A
Connection data (output)
Conductor cross-section, AWG/kcmil , max. 12
Conductor cross-section, AWG/kcmil , min. 26
Conductor cross-section, flexible , max. 2.5 mm?
Conductor cross-section, flexible , min. 0.14 mm?
Conductor cross-section, rigid , max. 2.5 mm?
Conductor cross-section, rigid , min. 0.14 mm?
Connection system PUSH IN
Number of terminals 2 (+ / -)
Screwdriver blade 0.6 x 3.5
Approvals
Institute (cULus)
Certificate no. (cULus) E258476
Downloads
Brochure/Catalogue
Engineering Data EPLAN, WSCAD, Zuken E3.S
User Documentation
СостояниеНовое
