| General ordering data | |

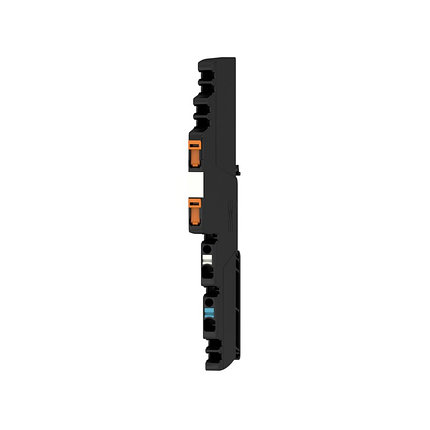

| Type | AMG DIS EX |
| Order No. | 2495100000 |
| Version | Potential distributor |
| GTIN (EAN) | 4050118504798 |
| Qty. | 10 pc(s). |
| Availability | Delivery date on request |
| Dimensions and weights | |
| Width | 6.1 mm |
| Width (inches) | 0.24 inch |
| Height | 125 mm |
| Height (inches) | 4.921 inch |
| Depth | 96.5 mm |
| Depth (inches) | 3.799 inch |
| Net weight | 42.2 g |
| Probability of failure | |
| MTTF | 13,000 Years |
| output | |
| Connection system | PUSH IN |
| General data | |
| Current load per contact point | 12 A |
| Potential isolation | +, GND |
| Protection degree | IP20 |
| Total current load per potential | 12 A |
| Connection data (output) | |
| Conductor cross-section, AWG/kcmil , max. | 12 |
| Conductor cross-section, AWG/kcmil , min. | 26 |
| Conductor cross-section, flexible , max. | 2.5 mm? |
| Conductor cross-section, flexible , min. | 0.14 mm? |
| Conductor cross-section, rigid , max. | 2.5 mm? |
| Conductor cross-section, rigid , min. | 0.14 mm? |
| Connection system | PUSH IN |

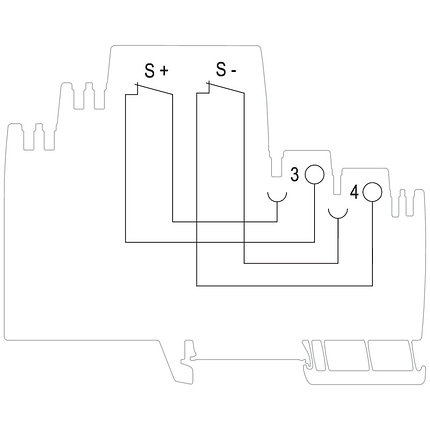

| Number of terminals | 2 (+ / -) |
| Screwdriver blade | 0.6 x 3.5 |
| Approvals | |
| Institute(ATEX) | |
| Certificate No. (ATEX) | DEMKO17ATEX1870X |
| Institute (cULus) | |
| Certificate no. (cULus) | E258476 |
| Institute (cULusEX) | |
| Certificate no. (cULusEX) | E470829 |
| Ratings IECEx/ATEX/cUL | |
| Certificate No. (ATEX) | DEMKO17ATEX1870X |
| Certificate No. (IECEX) | IECEXULD17.0018X |
| Downloads | |
| Engineering Data | EPLAN |
| Engineering Data | STEP |
| User Documentation | Manual_Maxguard_01_04_2017_DE_EN |
| Classifications | |
| ETIM 6.0 | EC000897 |
| eClass 6.2 | 27-14-11-25 |
| eClass 9.1 | 27-14-11-20 |
| Основные атрибуты | |
|---|---|
| Состояние | Новое |
- Цена: Цену уточняйте
