General ordering data
Type AMG MD EX
Order No. 2495040000
Version Potential distributor
GTIN (EAN) 4050118504804
Qty. 10 pc(s).
Availability Delivery date on request
Dimensions and weights
Width 6.1 mm
Width (inches) 0.24 inch
Height 125 mm
Height (inches) 4.921 inch
Depth 96.5 mm
Depth (inches) 3.799 inch
Net weight 27.5 g
Probability of failure
MTTF 50,000 Years
output
Connection system PUSH IN
General data
Current load per contact point 12 A
Protection degree IP20
Total current load per potential 12 A
Connection data (output)
Conductor cross-section, AWG/kcmil , max. 12
Conductor cross-section, AWG/kcmil , min. 26
Conductor cross-section, flexible , max. 2.5 mm?
Conductor cross-section, flexible , min. 0.14 mm?
Conductor cross-section, rigid , max. 2.5 mm?
Conductor cross-section, rigid , min. 0.14 mm?
Connection system PUSH IN

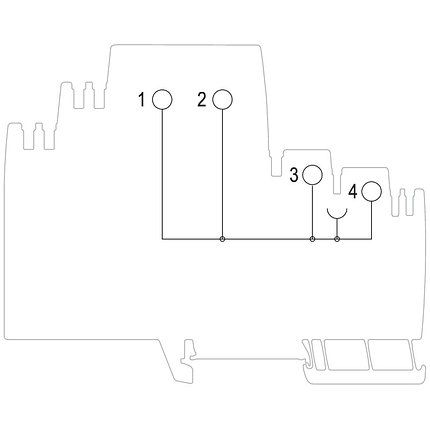

Number of terminals 4 (4x -), 2 x 1.5 mm?, 2 x 2.5 mm?
Screwdriver blade 0.6 x 3.5
Approvals
Institute(ATEX)
Certificate No. (ATEX) DEMKO17ATEX1870X
Institute (cULus)
Certificate no. (cULus) E258476
Institute (cULusEX)
Certificate no. (cULusEX) E470829
Ratings IECEx/ATEX/cUL
Certificate No. (ATEX) DEMKO17ATEX1870X
Certificate No. (IECEX) IECEXULD17.0018X
Downloads
Engineering Data EPLAN
Engineering Data
User Documentation
Classifications
ETIM 6.0 EC000897
eClass 6.2 27-14-11-25
eClass 9.1 27-14-11-20
